AST Electric Big Rigs
Electric big rigs are a great option to complete projects where you are unable to use a gas powered machine. If you have a high-rise downtown, multifamily dwellings exceeding 7 stories, or you’re spraying in a manufactured housing plant, the electric option is the spray rig you need.
Our electric power hydraulic control spray machines are modular. You can order your machine to meet your specific needs. If factory air is available, you may not require a compressor. We offer trailer, skid and castor mount versions. The castor version is heavy duty and can be easily wheeled around on asphalt or cement floors. Also offered are single tank, split tank (200, 270, and 350 only) and a special double pump version that is designed to support two spray operators at the same time.
If you are working in a manufactured housing plant, factory setup is easy and installation is a snap. Each unit comes with a motor starter control box. Connect your power line and you are ready to spray.
100
150
150

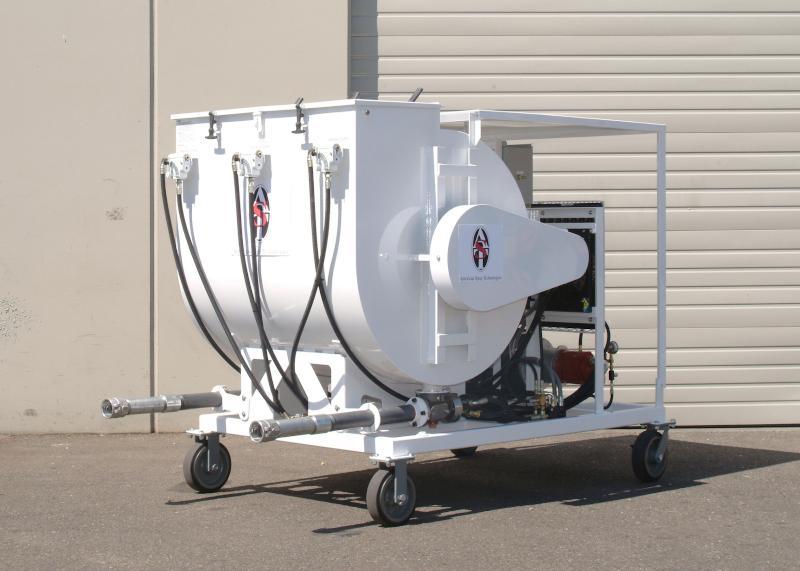

350
Standard Features
The Electric models have all the best features including:
- Available in 100, 150, 200, 270 and 350 gallon sizes
- For 100: 7.5 HP 3-phase 220 or 440 VAC electric motor and no compressor
- For 150, 200, 270 and 350: 15 HP electric motor and no compressor
- Single tank
- 125’ hose set with pole gun with air control pump switch
- Stainless steel tank, lid, hinge and mixing paddles
- Tube frame welded construction, to handle heavy loads
- AST special pole gun with hardened steel tips
- 2L4 high performance pump
- Stainless steel texture strainer
- High performance material hose rated at 3200lb burst
Options
- Upgraded motor and compressor (see below for configurations)
- Electric pump switch
- Binks gun
- Flex pole gun
- Long pole gun
- 7E2 Flex gun
- Longer hose set
- Split tank (not available in 100 or 150 gallon models)
- HD Butterfly valve pump (Video: HD Pump)
- Water washdown
- Add your logo to the tank
The motor starter control box includes:
- Main line switch
- Line fuses
- Overload protection
- Start/stop buttons
- Control circuit transformer
Engine and Compressor Configurations
For 100 gallon electric rigs
| Motor | Compressor | |
| Standard | 7.5 HP 3-phase 220 or 440 VAC Electric Motor | 13 CFM Compressor |
| Option A | 7.5 HP 3-phase 220 or 440 VAC Electric Motor | No Compressor |
For 150 and 200 gallon electric rigs
| Motor | Compressor | |
| Standard | 15 HP Electric Motor | No Compressor |
For 270 and 350 gallon electric rigs
| Motor | Compressor | |
| Standard | 15 HP Electric Motor | No Compressor |
| Option A | 25 HP Electric Motor | 23 CFM Compressor |
| Option B | 25 HP Electric Motor | 35 CFM Compressor |
Size and Weight Specifications
| Size | Length | Width | Height (closed) | Height (open) |
| 100 | 78” | 32” | 47” | 67” |
| 150 | 81” | 49” | 49” | 69” |
| 200 | – | – | – | – |
| 270 | – | – | – | – |
| 350 | – | – | – | – |
